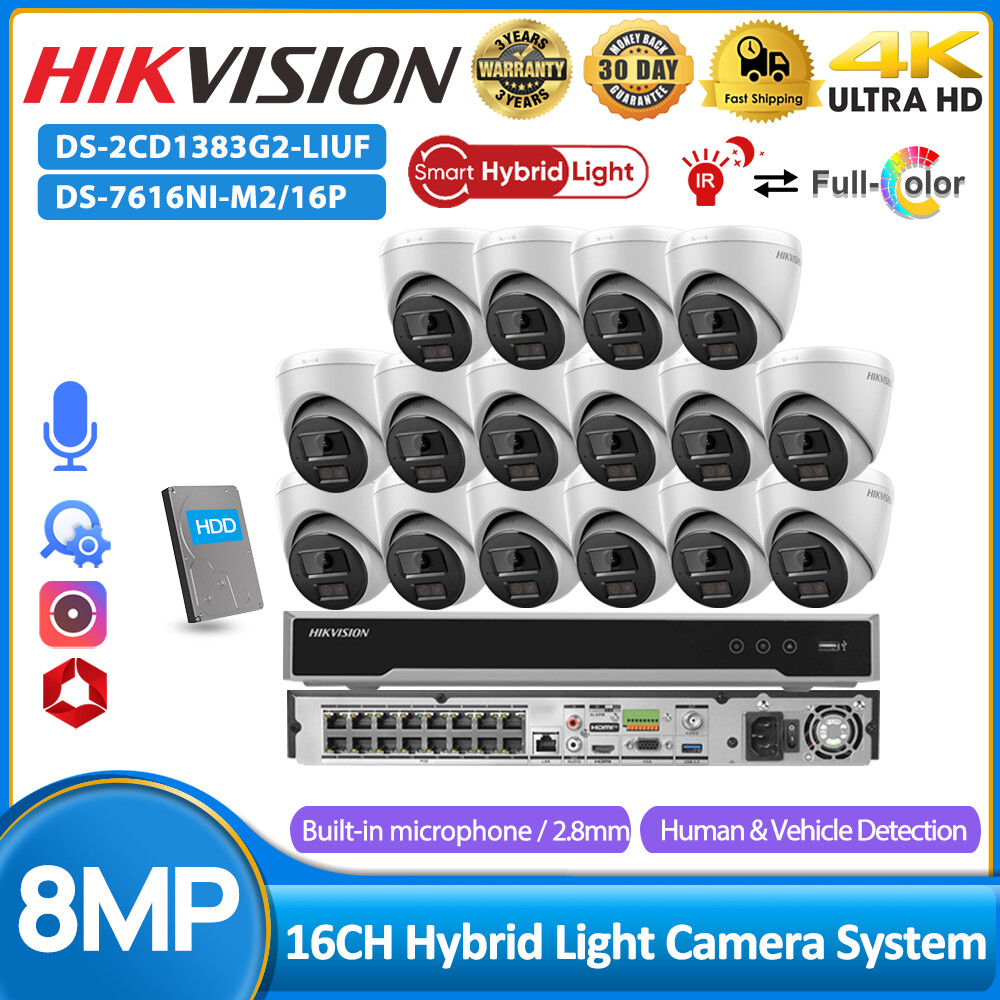

Hikvision 16CH 16POE NVR 4K 8MP Hybrid Light ColorVu Security CCTV Camera System
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21

Hikvision 16CH 16POE NVR 4K 8MP Hybrid Light ColorVu Security CCTV Camera System

GBP 697.00
Condition: New
Category: Electronics
View on eBay Back to Home
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping
Hikvision 16CH 16POE NVR 4K 8MP Hybrid Light ColorVu Security CCTV Camera System

>>> This camera system is 100% Hikvision Original, support firmware upgrade.
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help.

💥 Phone APP: Hik-connect
💥 PC Client: iVMS-4200
💥 Search Tool：SADP


8MP 4K High Resolution
High-Definition interface output,Support for online playback,Mobile remote,Multi-window display with 8MP Resolution.The angle will be more
larger,and the image will be more clearer.

Smart Hybrid Light
Security cameras with Smart Hybrid Light provide three supplemental lighting modes: IR mode, white light mode, and smart mode. Users can take the advantage to select the ideal lighting mode for their application and the specific environment.
1.IR Mode
The IR light is always on, and video imaging remains black and white (at night).
2. White Light Mode
White light is always on, and the camera captures color imaging 24/7.
3. Smart Mode
In this mode, when there is no target in the area, the camera uses only the IR light, which is invisible to the human eye and eco-friendly. When a target appears, the camera automatically triggers the white light, resulting in vivid color imaging with clear detail. In Smart Mode, you can benefit from overall security and adequate agility.


AcuSense - Focus on Human and Vehicle Targets Classification
Hikvision's AcuSense technology embeds deep-learning algorithms into select security cameras and video recorders to automatically detect
humans and vehicles through real-time video analytics and push instant notifications to users' mobile devices. By minimizing false alarms
triggered by animals, falling leaves, heavy rain, and other moving objects, AcuSense enables businesses and homeowners to focus security
resources on real threats.

Audio Recording,One-Way Talk
Built-in waterproof microphone,designed for optimal noise cancellation and echo reduction, high quality audio performance. It can make
preview and playback with sounds.

Smart Motion Detection & Instant Alerts
When detecting a moving object in the monitoring area, this camera starts recording and send message to your mobile phone or email at the
same time, reminding you to take protective measures in time.



Water and Dust Resistant (IP67)
The camera passes a series of strict test on dust and soak.The camera case is made of high-quality metal, it could protect your camera from
violent destruction and rain ourdoors. It has dust-proof function, and the enclosure can works normal after soaking in 1m deep water for 30 minutes.
Camera's Working Environment:  Temperature: -30 °C to 60 °C (-22 °F to 140 °F), humidity: ≤ 95%


Efficient H.265+ compression technology

Easy to setup, plug and play with Hikvision NVR




DS-2CD1383G2-LIUF 8 MP Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)




DS-7616NI-M2/16P Hikvision Original 16CH 16POE  8K NVR

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 16-ch IP camera inputs
  • Up to 16-ch@4MP decoding capacity
  • Up to 256 Mbps incoming bandwidth
  • Up to 8-ch IP speakers can be connected





  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Max. Resolution3840 × 2160
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

    4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0
  • DORI
  • DORI

    2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

    4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz:

    12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Audio TypeMono sound
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200,Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in MicrophoneYes
  • Reset Key-F: Yes
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
  • General
  • Power

    12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 6.5 W

  • MaterialMetal & Plastic
  • DimensionØ110 mm × 93 mm (Ø4.33" × 3.66")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • WeightApprox. 385 g (0.85 lb.)
  • With Package WeightApprox. 586 g (1.3 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC

    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
  • Video and Audio
  • IP Video Input

    16-ch

    Up to 32 MP resolution

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Incoming Bandwidth256 Mbps
  • Outgoing Bandwidth256 Mbps
  • HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
  • VGA Output1920 × 1080/60Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution

    32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

    *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

  • Synchronous Playback16-ch
  • Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Dual-Stream RecordingSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Camera Access ProtocolONVIF(Version 2.5), RTSP
  • PoE
  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 200 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 16 TB capacity for each disk
  • Alarm In/Out4/1
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
  • Weight≤ 3 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CE

    EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

    9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020








1. All payments must be prepaid.
2. Please make sure that your Recipient Information includes your Phone Number. And please make sure the Address and Post Code is correct, if you want to change your shipping address, please email us in time. We are not responsible for wrong or undeliverable address.
3. Your patience for International Shipping Order will be highly appreciated.




1.We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback.
2.We greatly appreciate your POSITIVEFeedback. Please do NOT leave negative feedback without asking for help. If you have any question , you can send message to us , we will try our best effort to solve it
1. All payments must be prepaid.

2. We only accept payment via Paypal. Please kindly check if you can pay via PayPal before placing order.

1. packages will be sent out within the same day or 1 working days after the payment is received.

2. Orders place on the weekends will be shipped out on next Monday or Tuesday (holidays excluded).

3. Local pickup is not available.

4. We regret that we can not be responsible for any wrong or undeliverable addresses.
5. We'll pay for export custom tax,Buyer should pay for import custom tax if needed.
1. We automatically submit positive feedback to our buyers once the order is finished.

2. If you are satisfied with our product, please leavePositive Feedback, which means a lot to us, thanks in advance.

3. PleaseDo not leave Negative or Neutral Feedback before Contacting us, leave negative feedback can not solve any problem, but we will work with you to resolve those problems.

4. Please feel free to contact us viaEbay Message or E-mail.We generally reply messageswithin one business day, butexcept holidays.

Return & Warranty:

1. We guarantee against any defective products.

2. We provide 30 days money back on non-defective, undamaged, unused and resalable products. Restocking fee and other fee may apply upon the condition of returned products. Shipping and handling fees are non-refundable. Product is not eligible for refund after the 14-day refund period is expired.

3. For any returned product, please contact us through ebay message firstly, we will work on resolving your particular case ASAP.

Any question please feel free to contact us, we will respond within 24 hours.
Package Included NVR+4PCS Cameras
HDD Capacity None
Brand Hikvision
Model DS-7616NI-M2/16P+DS-2CD1383G2-LIUF
Type Complete System
Connectivity Wired
Smart Home Compatibility Hikvision
Surveillance Technology CCTV
Features Smart Hybrid Light, Human and Vehicle Detection, Efficient H.265+, Built-in microphone, IP67, Water and dust resistant, Night Light, Night Vision, Outdoor/Weatherproof, Wall Mounted, Waterproof, Motion detection, Multiple Language Support, Motion/PIR Activated
Smart Home Protocol Infrared
Location Outdoor & Indoor
Maximum Resolution 3840 × 2160（8MP）
Number Of Cameras Included 16
Power Source 12 VDC+PoE: IEEE 802.3af
Voltage 12 V
MPN DS-2CD1383G2-LIU, DS-7616NI-M2/16P, DS-2CD1383G2-LIUF
Lens Type Fixed focal lens, 2.8MM
Image Sensor 1/2.7" Progressive Scan CMOS
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Response Time 1/3 s to 1/100,000 s
Supplement Light Type IR,White Light(Up to 30 m)
Built-In Microphone YES
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Manufacturer Warranty 3 Years
Compatible Brand Hikvision
Items Included Camera, NVR, HDD
Number Of Channels 16
Recording Resolutio 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p
NVR Decoding Capability 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)
NVR Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
NVR POE Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
NVR SATA Capacity 2 SATA interfaces, Up to 16 TB capacity for each disk
NVR USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Colour White
Colour Mode Colour

Explore More Pages
